Home > Products > Tin phosphor bronze belt

Tin phosphor bronze belt

Range and tolerance of Products

Thickness: 0.05mm~1.00mm
Width: Mother coil Width: 600mm
Strip Width:≧7mm
Minimum thickness tolerance: +/-0.002mm
Minimum Width tolerance: +/-0.05mm
Weight per mm:≦10kg/mm
Packaging: flat-wrap packaging, spiral style packaging, TWD packaging, Coil-to-Coil Packing
Coil inner diameter: 300mm; 400mm; 500mm

Products include:

red copper strip, lead frame material, phosphor bronze strip, brass strip, tinning copper alloy strip, nickel silver strip, copper-nickel-silicon strip;

Quality assurance:

always taking the international first-class level as the goal;

  • Praameters Introduce
  • Application Industries
  • Product Manual

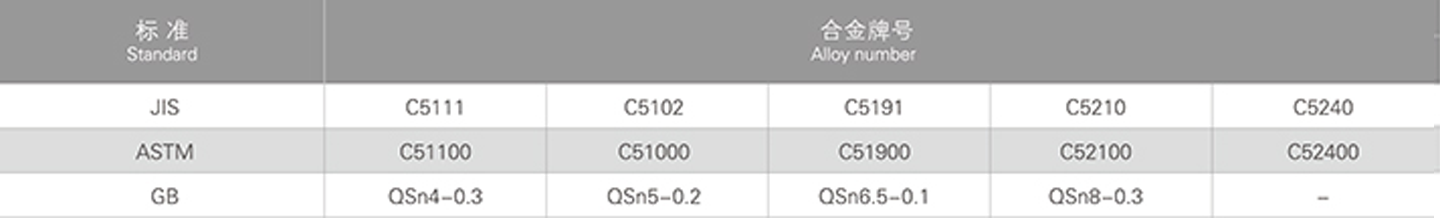

Comparison Table of Alloy Number

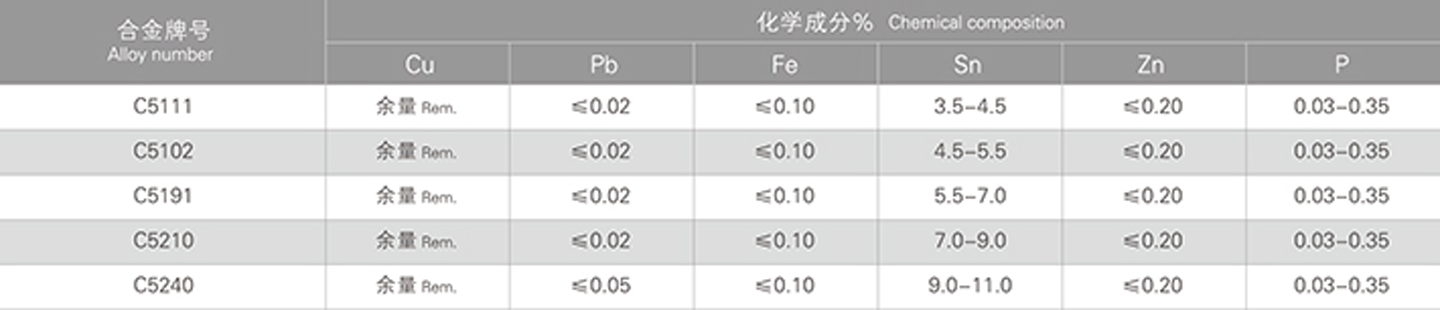

Chemical Composition

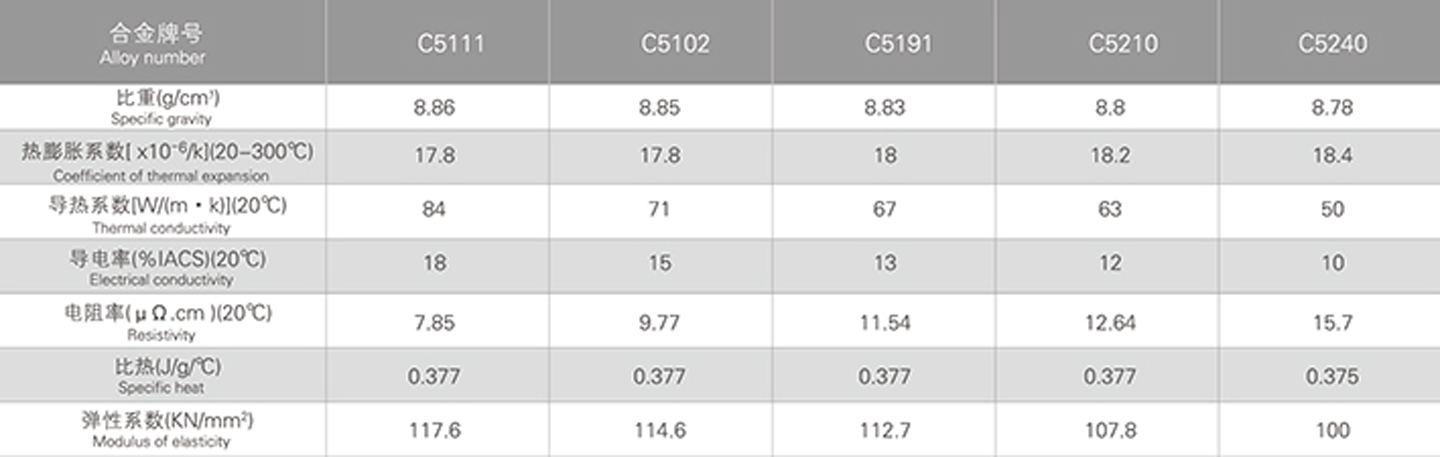

Physical Properties

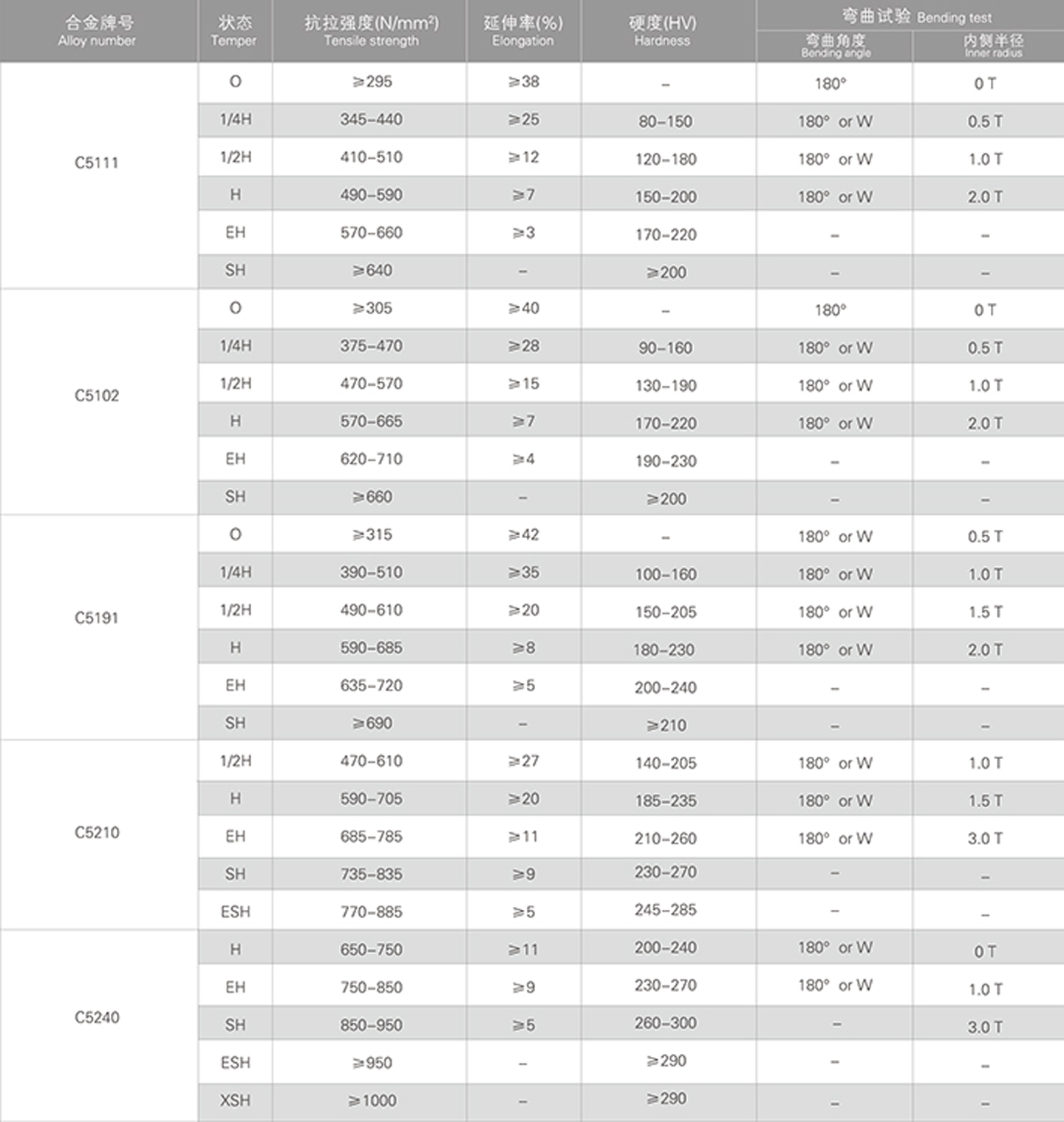

Mechanical Properties

Photovoltaic, semiconductor, automotive, electronics, electrical and other fields.

Precision Copper Alloy Strip

2018-09-11

Precision Copper Alloy Strip
